Smart Document Processing

A full-stack system for uploading messy business documents, extracting structured fields and guiding users through validation and review.

RoleFull-stack architecture & implementation

Project typeTechnical assessment / independent case study

NestJS
Angular
TypeScript
PostgreSQL
Prisma
Docker

View source on GitHub

The challenge

Uploaded documents arrive in different formats and often contain incomplete or inconsistent data. The system needed to preserve the original submission, extract what it could, explain validation failures and remain extensible for more advanced parsers.

Product interface

From workflow to detail

Smart Processing dashboard with document metrics and totals by currency — 01Processing overview and operational metrics

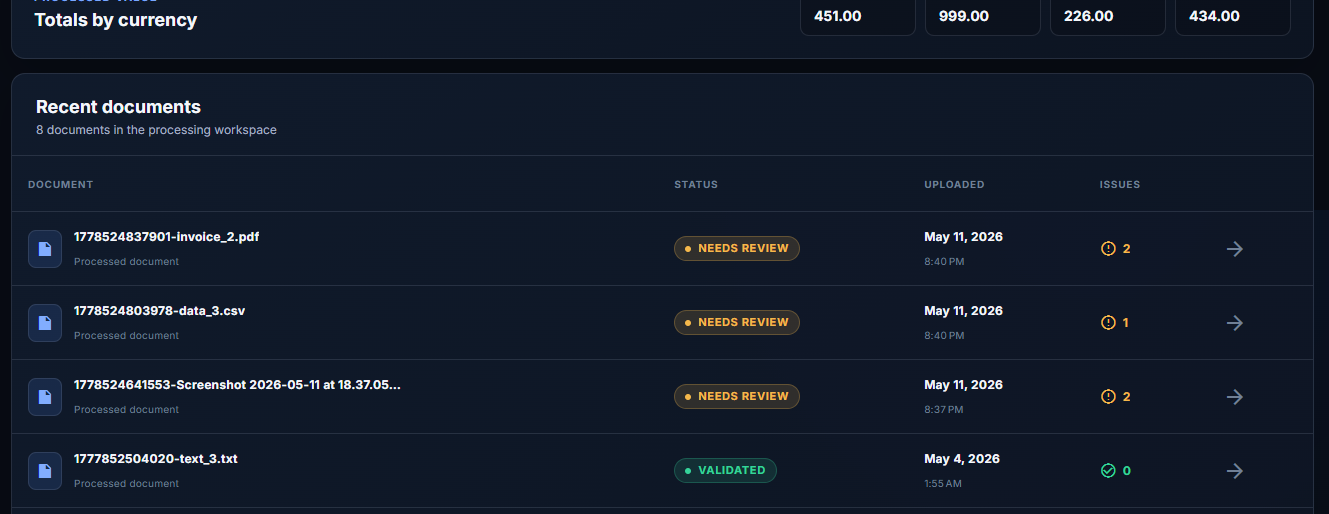

Recent documents table with validation statuses and issue counts — 02Document queue, statuses and open issues

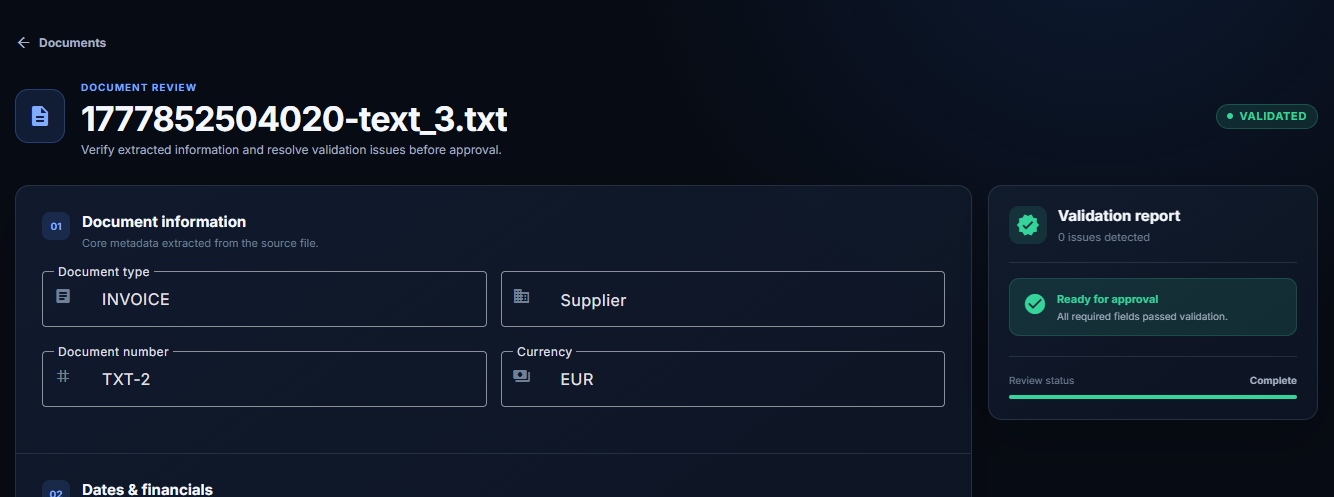

Validated document review screen with extracted invoice information — 03Validated document and approval state

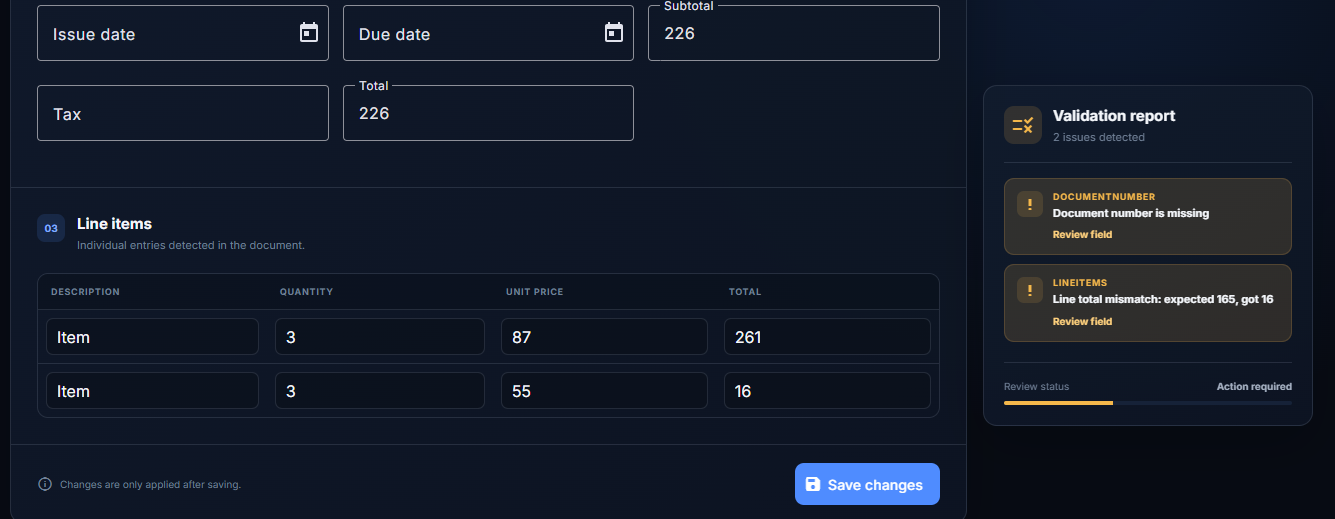

Document review screen with editable line items and validation issues — 04Human correction and structured validation feedback

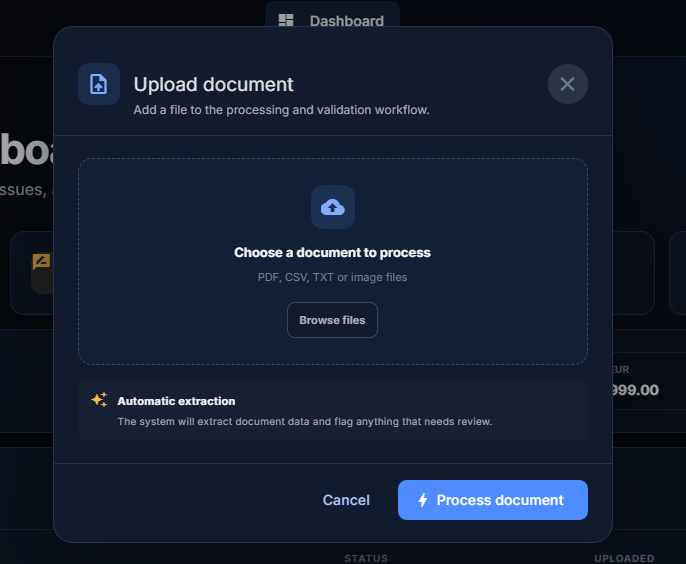

Document upload modal with automatic extraction workflow — 05Upload and automatic extraction workflow

The approach

I built a pipeline that stores upload metadata and processing status, routes files to format-specific parsers, normalizes extracted fields and records validation details instead of discarding invalid documents. An Angular dashboard then lets users review, correct and revalidate the extracted data.

What I built

Core implementation

Format-specific parsing

CSV, text and text-based PDF inputs are mapped into a shared extracted-document structure through isolated parsing responsibilities.

Validation as data

Missing fields, invalid totals, dates, line items and duplicate document numbers are returned and persisted as structured results.

Human review workflow

The Angular interface exposes document status, editable extracted fields, line items and validation feedback for correction and revalidation.

Traceable processing

Each upload retains its original name, file type, status, extracted payload and validation outcome, while dashboard totals are grouped by currency.

Engineering judgment

Key decisions

Persisted invalid documents so failures remain inspectable and can be reprocessed later.
Separated file upload, parsing and validation responsibilities.
Used JSON fields for evolving extracted payloads while keeping core document metadata relational.
Kept the OCR service isolated; image extraction still requires final pipeline integration before it should be treated as complete.

Next iteration

What I would improve

Connect the existing OCR service to the image extraction path and add representative scan fixtures.
Improve PDF fallback behavior and surface explicit extraction errors instead of returning an empty parse.
Move expensive processing to a queue and worker.
Add retry and dead-letter handling for failed extraction jobs.
Expand automated tests with malformed and duplicate document fixtures.
